New 2024

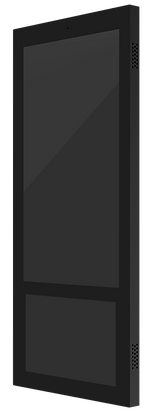

Ei-Slim Dual
Made for in-elevator and indoor
digital media networks
Professional Line
Ei Slim Dual key features
-
Narrow body and slim
-
Two physical independant screens in one unit
-
Bright LCD display 350 nits after glass.
-
All-in-one Android 9 / Windows OS (optional)
-
Built-in Video sensor for Ads Ai Analytics
-
Silent fan
-
Metal case
-
Wall mount bracket with extra room for better aair ventilation
1 board supports 2 independant screens
Industrial Design
The Ei Slim Dual advertising screen boasts an industrial design perfect for elevators and indoor spaces. With 4G and Wi-Fi connectivity, it ensures reliable content delivery. The smart wall mount bracket allows for easy installation and optimal viewing. Enhance your advertising strategy with this stylish and functional display solution.

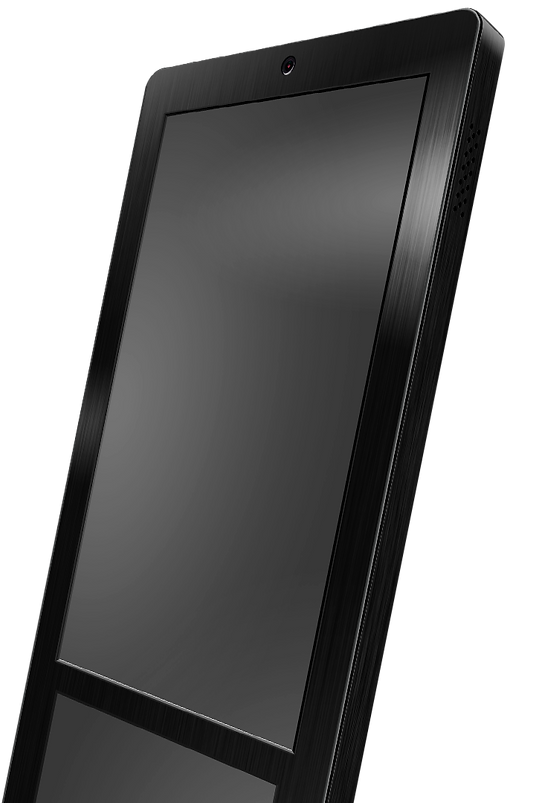

Advertising display with IPS technology and extensive viewing angle
IPS technology enhances the control of liquid crystals,
enabling the screen to be viewed from nearly any angle.
Tempered glass
protection
Covers all screen surface and provides
anti-scratch and anti-collision effect.
Anti-glare coating for better side view
Redesigned screen
wall mounting bracket
The redesigned wall mount bracket enables the installation of the Ei-Slim dual screen display on any wall surface, whether in elevators or indoors.
An additional 2mm gap has been added between the screen and the wall to enhance backdoor ventilation, contributing to the longevity of the screen's usage.
Back view of the
Ei Slim Dual elevator screen with bracket.
Install Methode front view of Ei Slim Dual elevator screen with mounting bracket.
Ei-Slim Dual
Elevator advertising display Technical specifications
Basic Information
Name
Model
Dimensions
Color
Weight
EI Slim Dual
Ei 2201
28.3 x 63.1 x 3.85 cm
Black
7 kg
Upper Screen
Lower Screen Specification
System Configuration
DS CMS
Hardware
Configuration
Power Confguration
Screen size
Resolution
True Brightness
18.5 Inch
1366*768
350 CD/m2
Screen size
Resolution
True Brightness
10.1 Inch
1280*800
350 CD/m2
CPU
RAM
ROM
OS
Intel Core i5 U series
4 GB
128 GB SSD
Windows 10 LTSC 21
Connected to Online manager cross DS marketing platform. Supports in All countries. Devices powered with AI Facial recognition functions, power-on self-starting, time switch, remote communication network.
Audio
Ports
Ethernet Support
Camera
Multimedia Input
2 speakers
USB x 2, VGA x 1, LAN x 1
4G Slot, LAN Wi-Fi
FR and FD ad. analytics
MPEG-4,H.263,H.264,VC1,RV
Audio MP3/WMA/AAC etc.
Picture jpeg, 16:9 1280*720 720P
Power Adapter
220-240V 50-60 hz
Storage Temperature
Operating temperature
Working humidity
0°C to + 60°C
0°C to + 45°C
RH 75
* Product design and hardware configuration can be differ from the original image and tech specs.
More than
just a screen
Ei-Slim Dual elevator advertising display
is a business & marketing tool
Driven by a CMS for managing ad content and analytics.
Inspired by technology, we created a flexible solution that transforms advertising displays into an AI-powered Ad analytics advertising broadcasting point
Available exclusively on all Ei series Digital Signage products, the AI-based video module analyzes ad campaigns by tracking views for each ad, dwell time, audience age, gender, and emotions. All these features are integrated into the original preinstalled CMS, eliminating the need for additional third-party applications.
